Diode PIN - 1SV80

DIODE PIN

Fabricant: DISCRETE SEMICONDUCTOR INDUSTRIES
Appellation fabricant: 1SV80
(ND6801-7-E)
Composant neuf

Diode Type: PIN DIODE
Application: ATTENUATOR; SWITCHING
Breakdown Voltage-Min: 30.0 V
Case Connection: ISOLATED
Configuration: SINGLE
Diode Capacitance-Max: 0.5 pF
Diode Element Material: SILICON
Diode Forward Resistance-Max: 15.0 ohm
Diode Res Test Current: 10.0 mA
Diode Res Test Frequency: 100.0 MHz
Frequency Band: VERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY

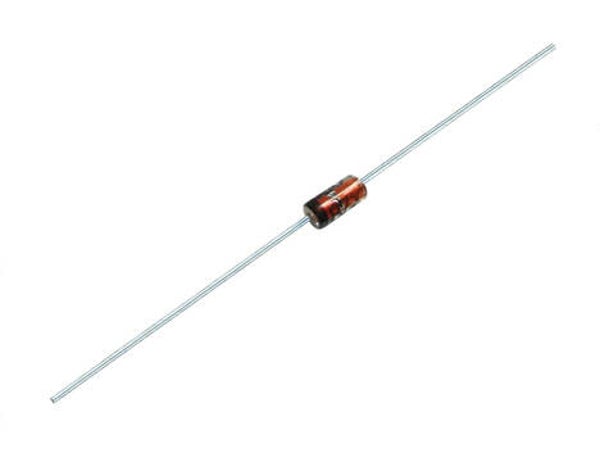

JEDEC-95 Code: DO-35
Minority Carrier Lifetime-Nom: 2.0 µs
Number of Elements : 1.0
Number of Terminals: 2
Operating Temperature-Max: 175.0 Cel
Package Body Material: GLASS
Power Dissipation-Max: 0.25 W
Technology: POSITIVE-INTRINSIC-NEGATIVE
Terminal Position: AXIAL
