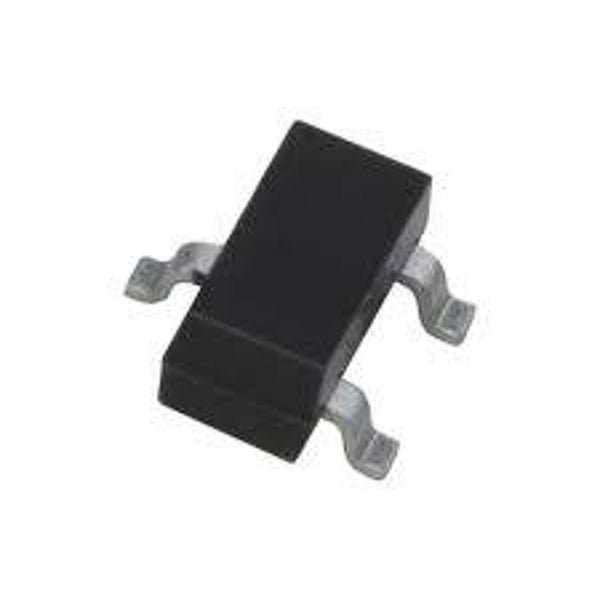

Transistor NPN Si BCR135

0,20 €
Référence de l'article: BCR 135

TRANSISTOR NPN BOITIER SOT23

Fabricant: SIEMENS
Appellation fabricant: BCR 135

Type Designator: BCR135
SMD Transistor Code: WJs
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 2.2 kOhm
Built in Bias Resistor R2 = 47 kOhm
Typical Resistor Ratio R1/R2 = 0.047
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 3 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: SOT23
