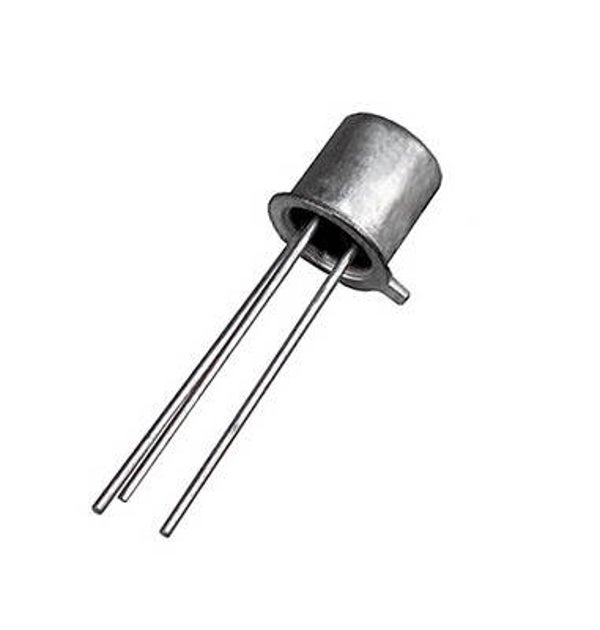

Transistor NPN Si 2N2369

TRANSISTOR NPN BOITIER TO-18

Fabricant: MOTOROLA / TEXAS-INSTRUMENTS
Appellation fabricant:
- TEXAS-INSTRUMENTS 2N 2369
- MOTOROLA 2N 2369
- GENERIQUE 2N 2369
Composant neuf

Name: 2N2369
Material of transistor: Si
Polarity: npn
Maximum collector power dissipation (Pc): 360mW
Maximum collector-base voltage (Ucb): 40V
Maximum collector-emitter voltage (Uce): 15V
Maximum emitter-base voltage (Ueb): 4V
Maximum collector current (Ic max): 200mA
Maximum junction temperature (Tj): 200°C
Transition frequency (ft): 500MHz
Collector capacitance (Cc), Pf: 4
Forward current transfer ratio (hFE), min/max: 40/120
Package of 2N2369 transistor: TO18
Application of 2N2369 transistor: Ultra High Frequency, Switching
